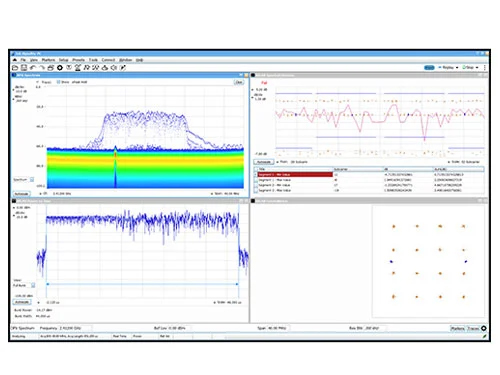

SignalVu software turns the 6 Series B MSO or DPO70000SX into wideband vector signal analyzers with a wide range of RF capabilities.  And with the 5GNR plug-in, the system can make key 5G signal measurements, including:

  • Error Vector Magnitude (EVM)
  • Channel Power (CP)
  • Adjacent Channel Power (ACPR)
  • Spurious Emission Mask (SEM)

In addition to viewing signals over time, these oscilloscopes also have extremely wide capture bandwidth versus traditional spectrum analyzers. The 6 Series B MSO is available with maximum frequency up to 10 GHz and can capture up to 2 GHz of instantaneous bandwidth. Its built-in downconverters provide fast, accurate results, and custom preamps deliver excellent noise performance and dynamic range.  The DPO70000SX is available with bandwidth up to 70 GHz and can capture up to its full bandwidth, allowing it to capture FR2 signals in real time.



Multi-Domain Signal Analysis

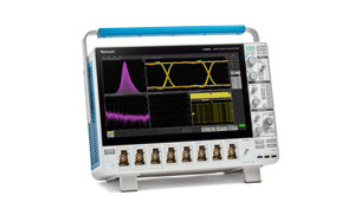

6 Series B MSO Mixed Signal Oscilloscope

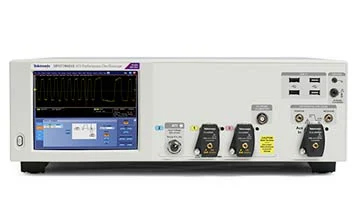

DPO70000SX ATI Performance Oscilloscope

Spectrum Analyzer Software for RF & Vector Signals

Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz

Bandwidth of 70 GHz.
Sample rate of 200 GS/s: Lowest Noise.
Highest Fidelity. Maximum Performance.

Get a comprehensive suite of tools to capture, isolate, and analyze hard-to-find transient RF signals of interest with confidence.


RSA5000B Series: Advanced Signal Analysis

RSA500 Series: Ultimate in Rugged Portability


Accelerate troubleshooting and analysis with best in class RF performance in a mid-range real-time Spectrum Analyzer.

  • Up to 26.5 GHz frequency coverage
  • Up to 165 MHz real-time signal acquisition bandwidth
  • 0.434 μs Minimum Event Duration for 100% POI

Real-time situational awareness in a rugged, portable form factor, the industry’s best for scanning, analyzing, and recording Radio Frequency signals when you need to, where you need to.

  • Up to 18 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Battery or line powered
  • 1.1 kg (2.43 lbs.)
  • Optional tracking generator



5G NR Resources

5G Validation and System Debug

5G New Radio Vector Signal Analysis

5G Over the Air Measurement

Learn how to perform multi-domain signal analysis of 5G base station and user equipment systems. See the benefits of using a mixed domain oscilloscope for analyzing RF amplifier performance.

See how you can simplify several 3GPP 5G New Radio transmitter tests. You’ll see how to verify transmitter characteristics including power, power dynamics, signal quality and RF emissions.

See how MIMO analysis of RF, analog and digital can be performed simultaneously for easy analysis and correlation between both the frequency and time domain.

Re-Imagine 5G Measurements

5G NR Multi-Channel System Troubleshooting

Learn how our 5GNR Signal Analysis Package enables wideband new radio measurements with Tektronix oscilloscopes.

Learn about the advantages of using single instrument for analyzing complex 5G systems where digital, analog, and RF signals interact
