Building A Deterministic Multi-Channel Precision Signal Generation System

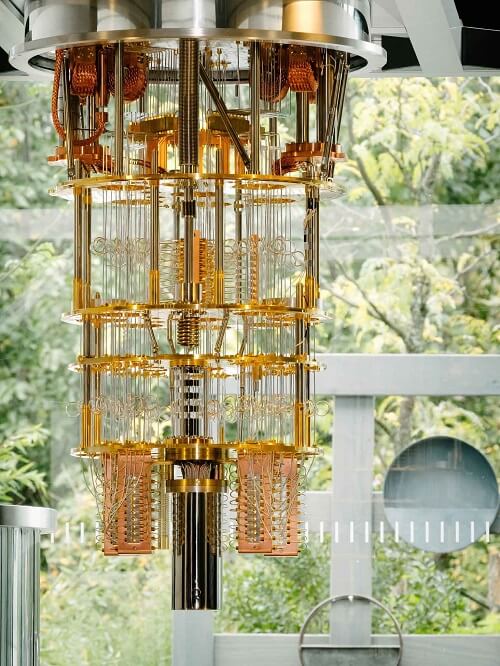

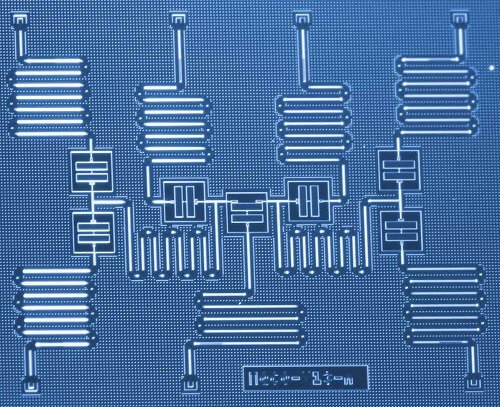

Quantum computing researchers around the world are rapidly scaling up from single qubit proof-of-concept designs to complex multi qubit designs for validation of operating theory. With IBM's launch of their new 50-qubit system, the world is on track towards a truly useable quantum computer. However, quantum computing still has challenges to overcome. Current quantum systems are incredibly complex and challenging to use. Each qubit requires some number of precisely timed and sequenced RF pulsed control signals. In general one does not specifically need an AWG to generate these signals. However, researches need a scalable way to build deterministic multi-channel precision signal generation systems.



Getting high fidelity, precise signal sources

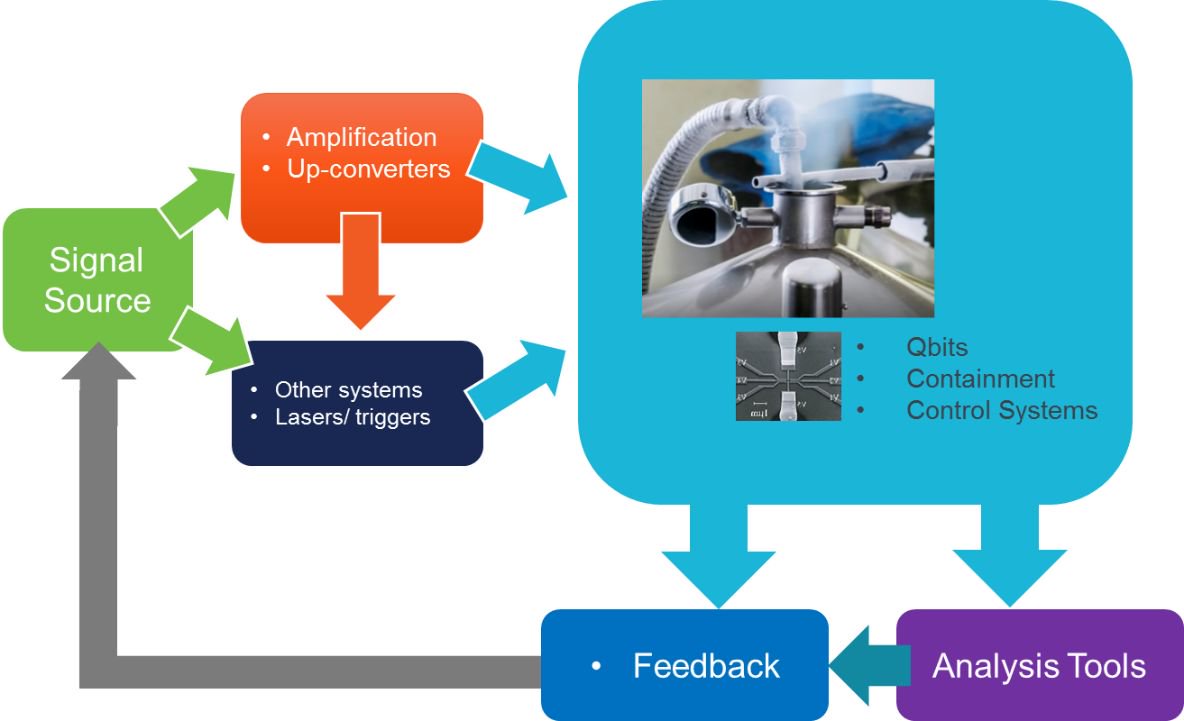

One of the more difficult challenges facing quantum researchers, regardless of the
technology in play, is sourcing the very precise signals needed to understand and
evaluate the behavior of the qubits. When the smallest detail could derail your
entire experiment, a controlled high precision signal will save time and allow you
to iterate quickly through test setups and waveforms. Tektronix AWG5200 Series
delivers unparalleled signal fidelity coupled with class-leading sample rate and
memory depth, giving you the industry's best signal stimulus solution.







Overcoming the scalability problem

With as many as 3 AWG channels needed for the proper control of each qubit and
with the number of qubits you're working on likely to increase in the future, cost per
channel and scalability are important considerations in any quantum computing
measurement solution. The AWG5200 offers 8 highly synchronized channels with
low cross talk at an attractive $10,000 per channel. Multiple instruments, channel-
channel sync in a given instrument is assumed to be a given.













Simplifying your test set-up

When you're working with the worlds most complex quantum systems, the last thing
you need is complexity in setting up your measurement equipment. The AWG5200's
full suite of waveform generation plugins are cross-compatible with legacy Tektronix
AWG software, which means you don't need to relearn a set-up process. Plus, you
can automate test set-ups using MATLAB scripts, making for a simpler yet
comprehensive test set-up.
