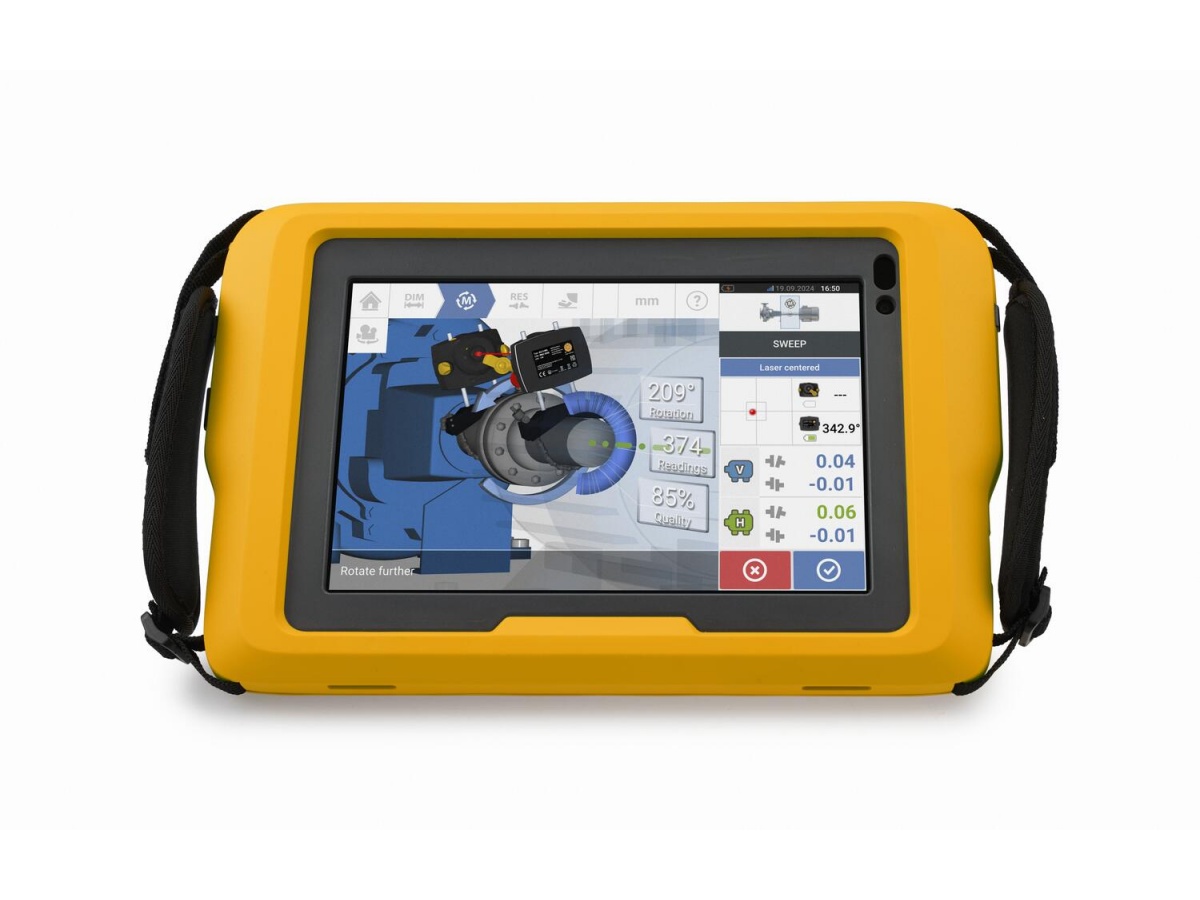

CPU

Processor:

Memory:

Qualcomm SnapdragonTM SM6375

Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)

Display

Technology: Resolution:

Dimensions:

Corning® Gorilla® Glass

600 nits, color WXGA 1280x800 8 inch/20.3 cm

Power Supply:

Operating time:

Battery: Charging:

Up to 11 hours

6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh)

USB-C

Connectivity

Wifi: Bluetooth:

RFID:

IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax

2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6) Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)

Integrated RFID with read and write capabilities Docking connector (charge and data)

USB-C side port (tablet charging and data only)

Environmental protection

IP 65:

Relative humidity

Dustproof and water jets resistant 5% to 95% non-condensing

Drop test

1.2 m (4 ft)

Temperature range

Operation: Storage:

-20°C to 50°C (-4°F to 122°F)

-40°C to 70°C (-40°F to 158°F)

Dimensions

213.9 mm L x 134.8 mm H x 11.4 mm D

8.42 in. L x 5.32 in. H x 0.45 in. D

Weight

485 g/1.07 lbs

Camera

Rear:


Front:

Rear: Image capture: 13 MP auto-focus camera with user controllable LED flash

5MP

CE conformity

Refer to the CE compliance certificate in www.pruftechnik.com

Carrying case

Standard Dimensions Weight

HPX® Harz, drop tested (2 m / 6 1/2 ft.)

Approx. 551 x 358 x 226 mm

(21 11/16” x 14 3/32” x 8 29/32”)

Including all standard parts - Approx. 11 kg (24.3 lb)

Type

5-axis sensor:

Measurement area:

Resolution: Accuracy (avg): Measurement rate:

2 planes (4 displacement axes and angle) unlimited, dynamically extendible

1 μm (0.04 mil) and angular 10 μRad

> 98%

approx. 20 Hz

Inclinometer error

0.3% full scale

Inclinometer resolution

0.1°

LED indicators

1 LED for laser adjustment and battery status

1 LED for Bluetooth® communication

Power supply

Battery:

Operating time:

Charging time:

Lithium-Ion rechargeable battery 3.7 V / 5 Wh 10 hours (continuous use)

Using charger – 2.5 h for up to 90%; 3.5 h for up to 100%; Using USB port – 3 h for up to 90%; 4 h

for up to 100%

External interface

Integrated Bluetooth 4.1 Smart Ready wireless communication USB 2.0 Full Speed

Environmental protection

IP 65

Relative humidity

dustproof and water jets resistant, shockproof 10% to 90%

Ambient light protection

Yes

Temperature range

Operation

Charging Storage

-10°C to 50°C (14°F to 122°F) 0°C to 40°C (32°F to 104°F)

-20°C to 60°C (-4°F to 140°F)

Dimensions

Approx. 105 x 74 x 58 mm (4 9/64” x 2 29/32” x

2 1/4”)

Weight

Approx. 235 g (8 1/3 oz.)

CE conformity

Refer to the CE compliance certificate in www. pruftechnik.com

Type

Semiconductor laser diode

Beam power

< 1mW

Inclinometer error

0.3% full scale

Inclinometer resolution

0.1°

Beam divergence

0.3 mrad

Wavelength

630 – 680 nm (red, visible)

Laser class

Class 2 according to IEC 60825-1:2014

The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Safety precaution: Do not look into laser beam

Power supply

Batteries Operating time:

2 x 1.5 V IEC LR6 (“AA“)

180 hours

Protection

IP 65 Relative humidity

dustproof and water jets resistant, shockproof

10% to 90%

Temperature range

Operation:

Storage:

-10 °C to 50 °C (14 °F to 122 °F)

-20 °C to 60 °C (-4 °F to 140 °F)

Dimensions

Weight

CE conformity

Approx. 105 x 74 x 47 mm (4 9/64” x 2 29/32” x 1 27/32”)

Approx. 225 g (7 15/16 oz.)

Refer to the CE compliance certificate in www.pruftechnik.com
