CPU

Processor:

Memory:

Qualcomm SnapdragonTM SM6375

Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)

Display

Technology: Resolution:

Dimensions:

Corning® Gorilla® Glass

600 nits, color WXGA 1280x800 8 inch/20.3 cm

Power Supply:

Operating time:

Battery: Charging:

Up to 11 hours

6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh)

USB-C

Connectivity

Wifi: Bluetooth: RFID:

IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)

Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)

Integrated RFID with read and write capabilities Docking connector (charge and data)

USB-C side port (tablet charging and data only)

Environmental protection

IP 65:

Relative humidity

Dustproof and water jets resistant

5% to 95% non-condensing

Drop test

1.2 m (4 ft)

Temperature range

Operation: Storage:

-20°C to 50°C (-4°F to 122°F)

-40°C to 70°C (-40°F to 158°F)

Dimensions

213.9 mm L x 134.8 mm H x 11.4 mm D

8.42 in. L x 5.32 in. H x 0.45 in. D

Weight

485 g/1.07 lbs

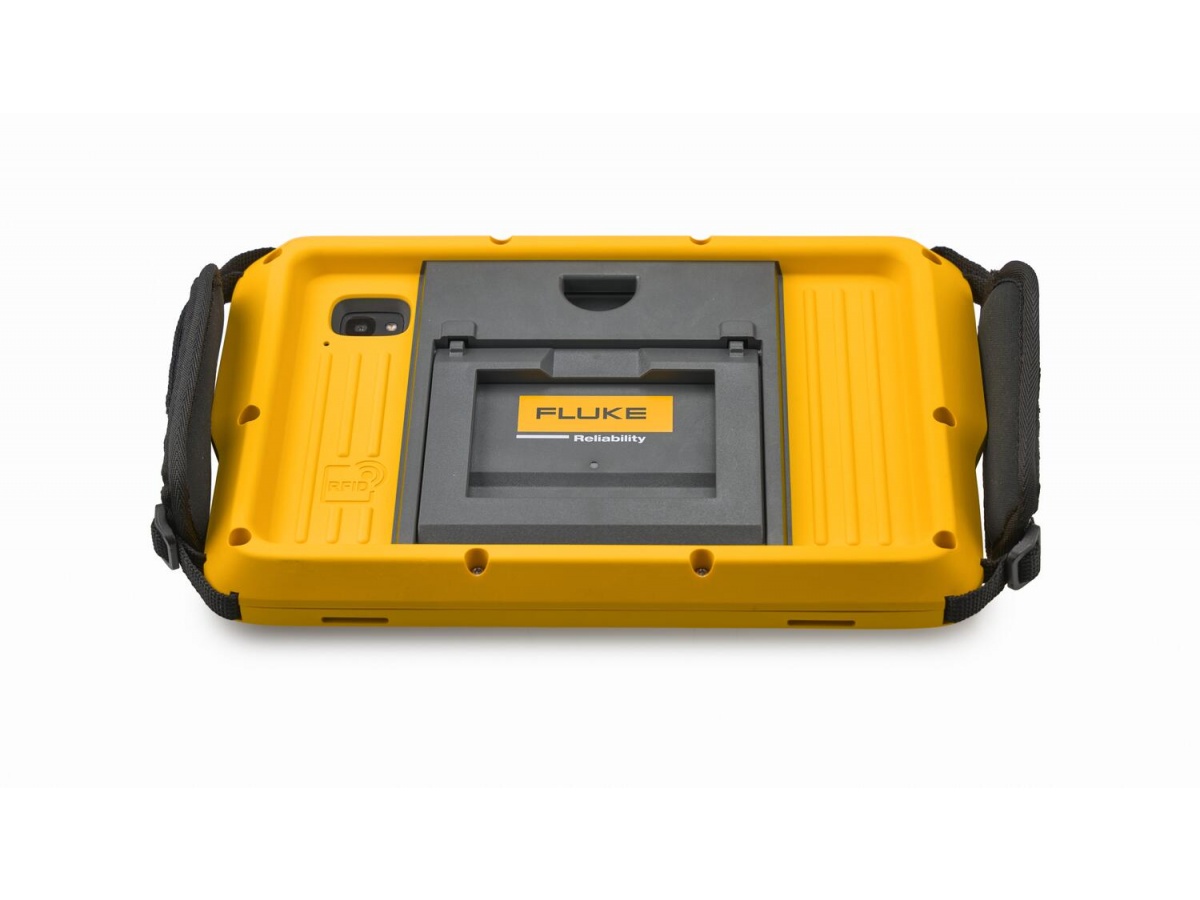

Camera

Rear: Front:

Rear: Image capture: 13 MP auto-focus camera with user controllable LED flash

5MP

CE conformity

Refer to the CE compliance certificate in www.pruftechnik.com

Carrying case

Standard Dimensions Weight

HPX® Harz, drop tested (2 m / 6 1/2 ft.)

Approx. 551 x 358 x 226 mm

(21 11/16” x 14 3/32” x 8 29/32”)

Including all standard parts - Approx. 11 kg (24.3 lb)

CPU

Type

1.0 GHz quad core ARM® Cortex-A9

LED indicators

4 LEDs for laser adjustment

1 LED for Bluetooth® communication 1 LED for battery status

Power supply

Operating time

Battery

12 hours typical use

Lithium Polymer rechargeable battery 3.7 V / 1.6 Ah 6 Wh

Environmental protection

IP 65

Relative humidity

(dustproof and water jets resistant) – as defined in regulation DIN EN 60529 (VDE 0470-1), shockproof

10% to 90%

Ambient light protection

Optical and active electronic digital compensation

Temperature range

Operation Charging

Storage

-10°C to 50°C (14°F to 122°F) 0°C to 40°C (32°F to 104°F)

-20°C to 60°C (-4°F to 140°F)

Dimensions

Approx. 103 x 84 x 60 mm

(4 1/16” x 3 5/16” x 2 3/8”)

Weight

Approx. 310 g (10.9 oz)

Measurement range

Unlimited, dynamically extendible

Measurement resolution

1 μm

Measurement error

< 1.0%

Inclinometer resolution

0.1°

Inclinometer error

± 0.25% full scale

Vibration measurement

mm/s, RMS, 10Hz to 1kHz, 0 mm/s – 5000/f mm/s² (f in Hertz [1/s])

External interface

Integrated Bluetooth® Class 1 wireless communication, RS232, RS485, I-Data

CE conformity

Refer to the CE compliance certificate in www.pruftechnik.com

Type

Semiconductor laser

LED indicators

1 LED for laser transmission 1 LED for battery status

Power supply

Operating time Battery

70 hours continuous use

Lithium Polymer rechargeable battery 3.7 V / 1.6 Ah 6 Wh AC adapter/charger: 5 V / 3 A

Environmental protection

IP 65

Relative humidity

(dustproof and water jets resistant) – as defined in regulation DIN EN 60529 (VDE 0470-1), shockproof

10% to 90%

Temperature range

Operation Charging

Storage

-10°C to 50°C (14°F to 122°F) 0°C to 40°C (32°F to 104°F)

-20°C to 60°C (-4°F to 140°F)

Dimensions

Approx. 103 x 84 x 60 mm

(4 1/16” x 3 5/16” x 2 3/8”)

Weight

Approx. 330 g [11.6 oz]

Beam power

< 1mW

Beam divergence

0.3 mrad

Wavelength

630 – 680 nm (red, visible)

Laser class

Inclinometer resolution

Inclinometer error CE conformity

Class 2 according to IEC 60825-1:2014

The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Safety precaution: Do not look into laser beam

0.1°

± 0.25% full scale

Refer to the CE compliance certificate in www.pruftechnik.com
